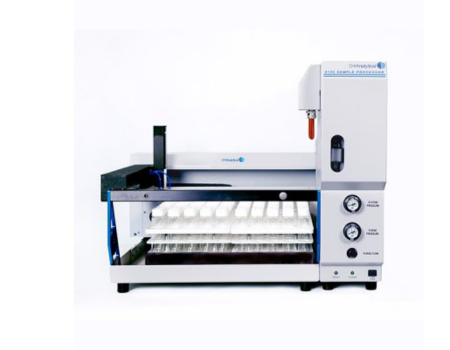

OI Analytical 4100 Water/Soil Sample Processor

Applications

The 4100 Water/Soil Sample Processor automates sample preparation for volatile organic compound (VOC) analysis in:

• Drinking water
• Wastewater
• Soil samples

The system processes samples contained in 40 mL VOA vials and is designed for compliance with U.S. EPA methods and international standards for purge-and-trap VOC analysis.

Water Sample Processing

Water samples are automatically lifted to the sampling station where a probe aspirates the sample and fills a sample loop for transfer to the purge-and-trap system.


Soil Sample Processing

Soil samples are processed directly in the vial. The system injects clean or spiked water, heats and stirs the sample, purges VOCs from the matrix and transfers them to the trap.

Benefits

• Automates handling and processing of water and soil samples for VOC analysis.
• Processes up to 100 samples in a single sequence.
• Operates with one or two Eclipse 4660 purge-and-trap instruments.
• VOA Constrictor™ vial gripper improves vial handling reliability.
• Integrated vial sensing detects vial presence.
• Automated standard addition improves precision.
• Reduced standard consumption helps lower operating costs.
• Optional vial cooling maintains samples at 10 °C or below before analysis.
• VOA View software provides method, sequence and sample management through a Windows-based graphical user interface


Downloads

OI 4100 Water Soil Sample Processor Flyer

Frequently Asked Questions

What is the OI Analytical 4100 Sample Processor used for?

The system automates the handling and processing of water and soil samples for purge-and-trap analysis of volatile organic compounds (VOCs).

How many samples can the system process?

The OI 4100 Sample Processor has a capacity of up to 100 standard 40 mL VOA vials.

Which sample types are supported?

The system is designed for drinking water, wastewater and soil samples.

Does the system support automated standard addition?

Yes. The standard configuration includes two 3 mL reservoirs, with expansion to four channels available as an option.

Is sample cooling available?

Yes. An optional vial cooling system maintains samples at 10 °C or below prior to analysis.

Which software controls the system?

The processor is operated through VOA View, a Windows-based graphical user interface for methods, sequences and standard addition management.
