CDS Analytical Thermal Desorption Systems

CDS applications

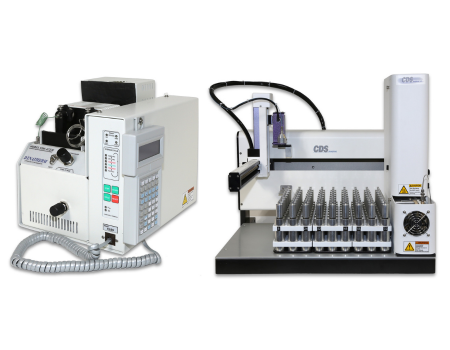

• The CDS 9300 Thermal Desorption System is the base model for single tube desorption featuring a hand-held controller for system maintenance and direct communication.
  With the highest programmable valve temperature on the market (350°C),  the 9300 can venture into applications where other systems cannot perform, including VOCs, sVOCs, polar and nonpolar compounds.
• The CDS 9305 Thermal Desorption System adds a Mass Flow Controller (MFC) for near-real time sampling. An optional heated sampling line is available to collect air samples.
• The CDS 9350 Thermal Desorption System is designed for continuous real time air monitoring with a dual thermal desorption tube setup. An optional heated sampling line is available.
• The CDS 7550 AutoSampler is capable of 3D positioning within 1 mm, and thanks to its unique user settable calibration, it could handle any standard 3.5" Thermal Desorption tube. The Internal Standard module and Sample Saver module are optional.
• The CDS 7550S AutoSampler is a stand-alone 72 position Thermal Desorption Autosampler for Thermal Desorption - Gas Chromatography - Mass Spectrometry (TD-GC-MS). The 7550S adopts two focus modes as Pre-desorb\Pre-heat function for high humidity sample, and optional Peltier module for lighter compounds, to improve the resolution of early eluting peaks.

CDC Features

9300 Series Features

• Versatile Configurations to Mainstream TD Tubes
• Cryogen Free with Pre-Desorb and Pre-Heat
• Hand-Held Plug-in Control Interface
• High Temperature Valve Oven at max 350°C
• Built Tough with Easy Maintenance
• Powerful Windows Based Software

Additional 9305 Series Features:

• Built-in MFC
• Quick Connect to Vacuum
• Compatible to Summa Canister

Additional 9350 Series Features:

• Dual TD Tubes
• Low Thermal Mass Trap
• Optional Heated Sampling Line

7550 Series Features:

• 72 Position Autosampler
• Excellent TD Tube Compatibility
• Precision Robotic Arm
• Optional Sample Saver
• Optional Gas IS Module
• Built-in Leak Check

Additional 7550S Series Features:

• Dual Mode Focusing Trap
• Stand-Alone Autosampler
• High Temperature Valve Oven Programmable to 300°C
• Powerful Windows Based Software
• Thermal Slicing/Tube Conditioning
• 10,000:1 Sample Split
